GG-1 Sample Model

shell bottom radius.jpg (41645 bytes)
UP

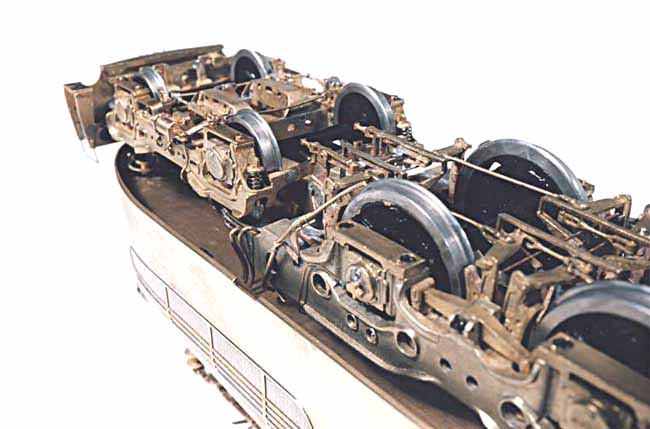

Perhaps the most difficult detail included on our model will be the bottom edge radius on the body shell.  This detail has never been modeled before, because of the complexity of the process, but it will be included in order to make our model as complete as possible and to provide the complete character of the body design.
